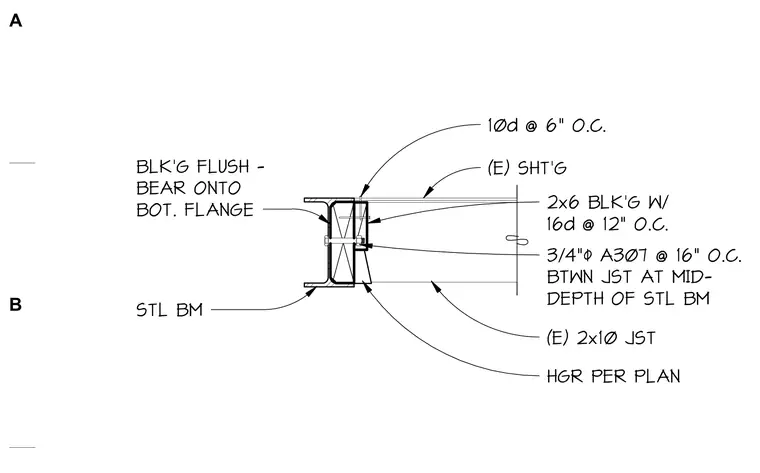

Existing two-by-ten wood joists bear onto the bottom flange of a steel beam with blocking flush against the web. A two-by-six blocking member is fastened with sixteen-penny nails at twelve inches on center and secured with three-quarter-inch diameter A307 bolts at sixteen inches on center located at the mid-depth of the steel beam. Existing sheathing is fastened with ten-penny nails at six inches on center. Joist hangers are provided per plan.
BLK'G FLUSH - BEAR ONTO BOT. FLANGE STL BM (E) SHT'G 10d @ 6" O.C. 2x6 BLK'G W/ 16d @ 12" O.C. (E) 2x10 JST 3/4"$ A307 @ 16" O.C. BTWN JST AT MID- DEPTH OF STL BM HGR PER PLAN A B
