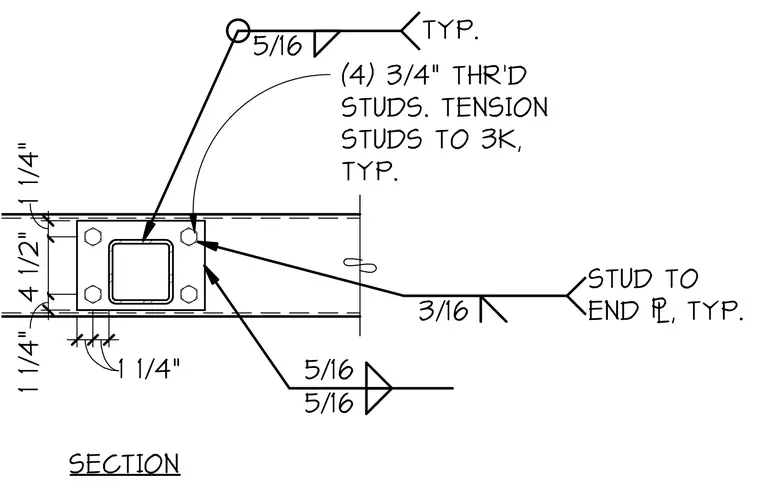

This connection assembly incorporates four three-quarter inch threaded studs, typically tensioned to three kips. The structural member features five-sixteenth inch and three-sixteenth inch welds tied to end plates and supporting elements. Dimensional spacing includes one and one-quarter inch clearances and a four and one-half inch span between components. Typical fillet welds are designated along the perimeter to secure the plate connections.
1 1/4" 4 1/2" 1 1/4" 1 1/4" 1 1/4" 5/16 5/16 5/16 TYP. (4) 3/4" THR'D STUDS. TENSION STUDS TO 3K, TYP. SECTION 3/16 STUD TO END , TYP.
