Structural · S-GTWEM

Incoming Brace to Column Web Anchor Rod Configuration

Materials

anchor

Elements

Columns Bracing Anchors / Embeds Connections / Plates

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

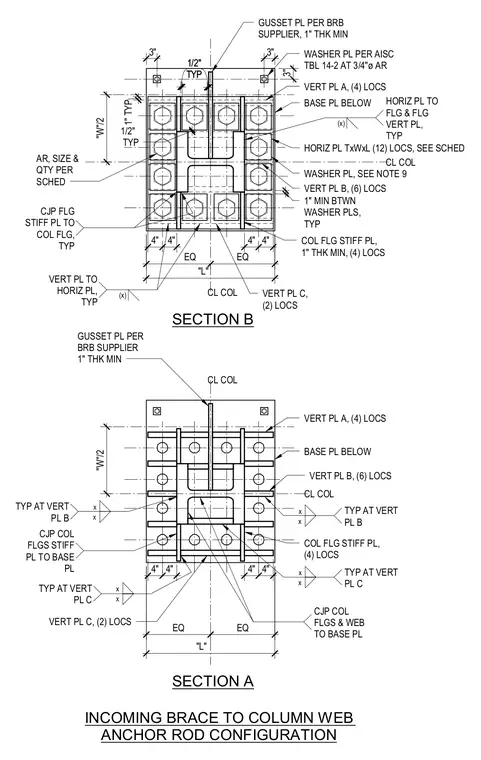

An anchor rod configuration for an incoming brace frames into a column web, featuring a base plate positioned below with multiple vertical and horizontal plates. A one-inch thick minimum gusset plate per the buckling-restrained brace supplier connects along the column centerline. Column flange stiffener plates, one-inch thick minimum, are welded to the column flanges with complete joint penetration welds. Washer plates are sized and quantified per the schedule, maintaining a one-inch minimum spacing between them. Horizontal plates and vertical plates A, B, and C tie the assembly together with specified welds and dimensions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
