Structural · S-GTV2D

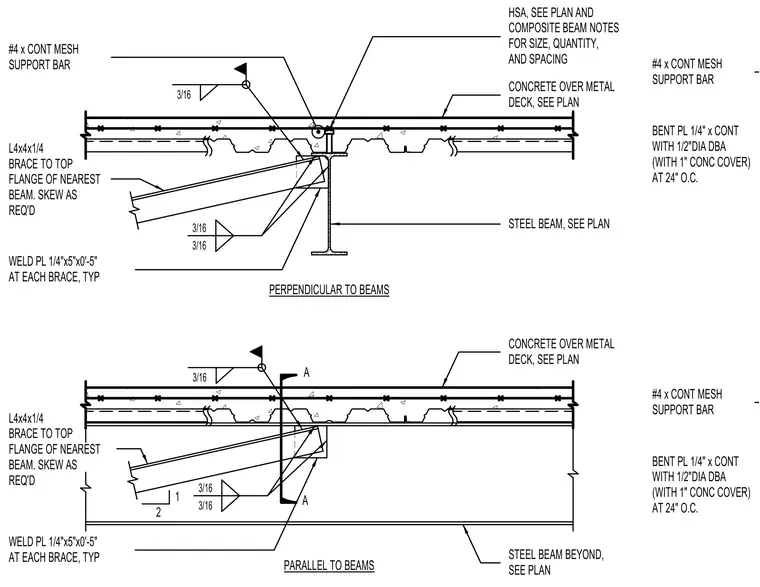

Typical Brace Connection at Steel Beam

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Decks Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

Brace connections frame into the top flange of a steel beam supporting concrete over metal deck. An L4x4x1/4 structural angle acts as a brace connected to the top flange of the nearest beam, skewed as required with a 3/16 fillet weld. A 1/4 inch by 5 inch by 0 foot 5 inch plate is welded at each brace using 3/16 fillet welds. A continuous 1/4 inch bent plate with 1/2 inch diameter deformed bar anchors at 24 inches on center is embedded in the concrete slab alongside a number 4 continuous mesh support bar.
