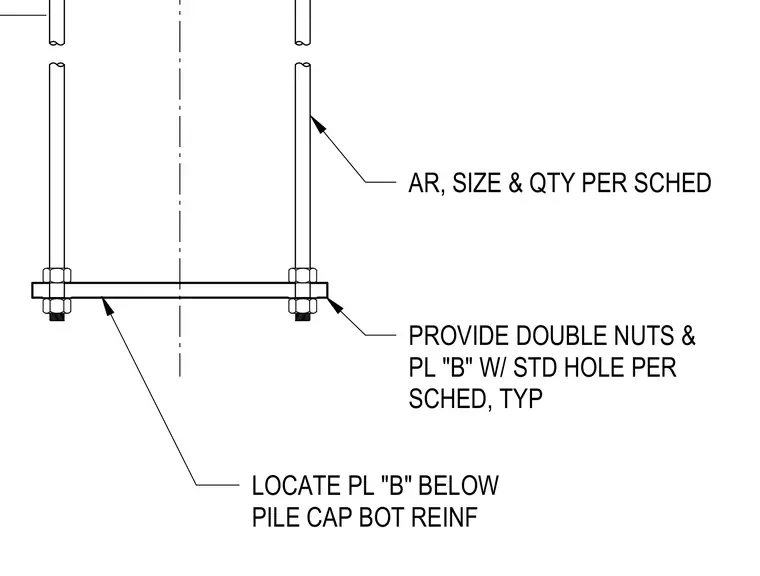

Anchor rods are detailed with double nuts and a steel plate with a standard hole sized per schedule. The plate is positioned below the bottom reinforcement of the pile cap. Rod size and quantity are provided per schedule.
PROVIDE DOUBLE NUTS & PL "B" W/ STD HOLE PER SCHED, TYP AR, SIZE & QTY PER SCHED LOCATE PL "B" BELOW PILE CAP BOT REINF
