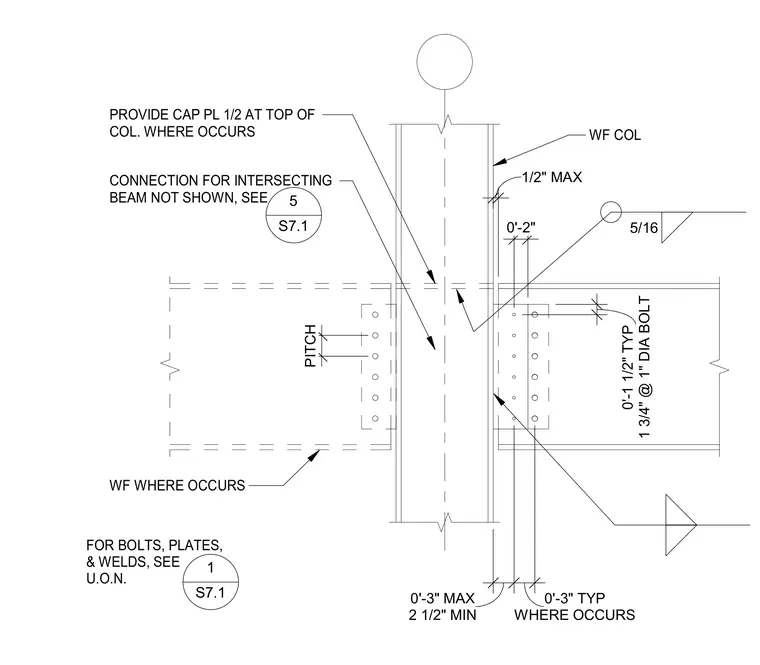

A wide flange beam connects to a wide flange column flange using a bolted web or flange connection with one-inch diameter bolts spaced at one and three-quarter inches typically. A one-half-inch thick cap plate is provided at the top of the column where required. Fillet welds of five-sixteenths size secure the connection assembly. Clearances and edge distances include two inches and a maximum of one-half inch.
5/16 2 1/2" MIN 0'-3" MAX WHERE OCCURS 0'-3" TYP 1 3/4" @ 1" DIA BOLT 0'-1 1/2" TYP 1/2" MAX 0'-2" PITCH WF COL PROVIDE CAP PL 1/2 AT TOP OF COL. WHERE OCCURS CONNECTION FOR INTERSECTING BEAM NOT SHOWN, SEE 5 S7.1 WF WHERE OCCURS FOR BOLTS, PLATES, & WELDS, SEE U.O.N. 1 S7.1
