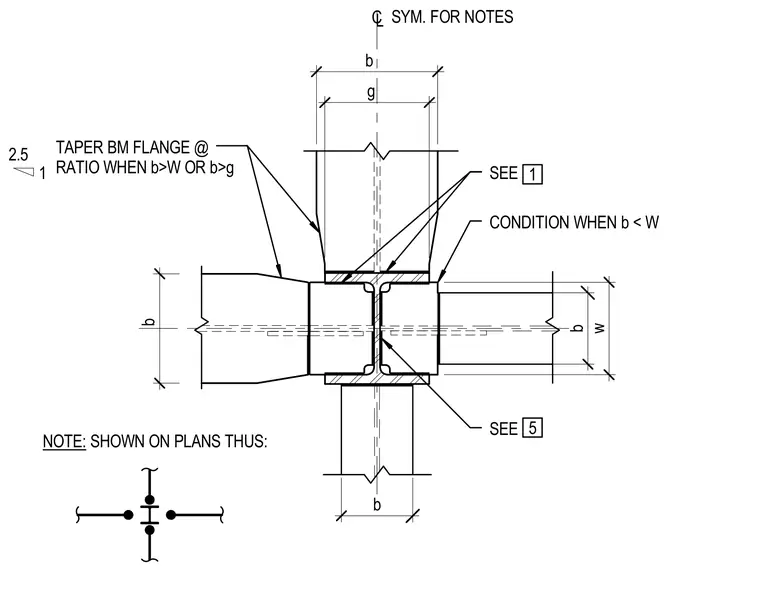

A welded beam flange to column connection incorporates conditions for tapered beam flanges based on flange width ratios. The connection accommodates varying flange widths and gauges relative to the column web or flange width. Tapered beam flange profiles are specified at specific ratios when the flange width exceeds the column dimension or gauge. Plan representation symbols and symmetry lines govern the alignment and notation of the connection components.
1 2.5 SEE SEE CONDITION WHEN b < W TAPER BM FLANGE @ RATIO WHEN b>W OR b>g CL SYM. FOR NOTES b b w b g b NOTE: SHOWN ON PLANS THUS: 1 5
