Structural · S-GTA96

Typical Trapeze Support Detail

Materials

Elements

About this detail

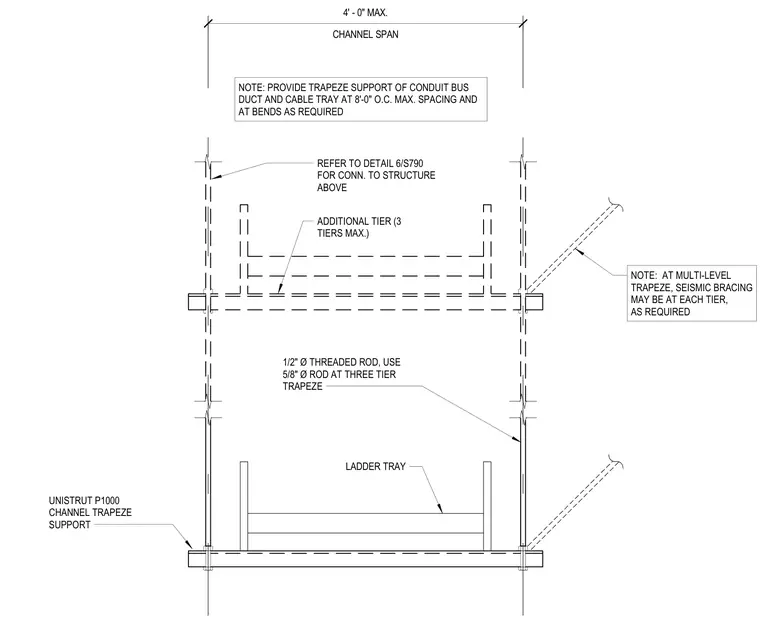

A ladder cable tray rests on a Unistrut P1000 channel trapeze support spanning a maximum of four feet. The assembly is suspended by one-half inch diameter threaded rods, increased to five-eighths inch diameter for a three-tier trapeze configuration accommodating up to three tiers. Additional tiers and connection to the structure above are detailed separately, with seismic bracing applied at each tier as required. Trapeze supports for conduit, bus ducts, and cable trays are spaced at a maximum of eight feet on center and at bends.
