Structural · S-GT6H2

Typical Concrete Edge Beam and Beam-Girder Intersection

Materials

Elements

About this detail

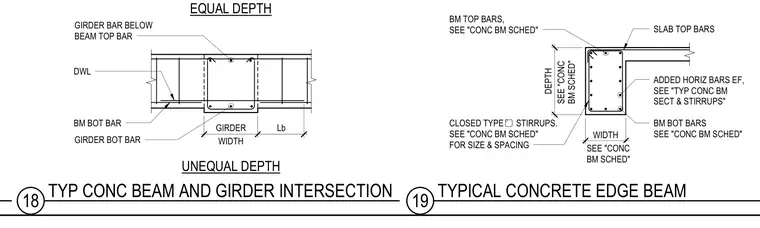

Reinforced concrete edge beam and beam-to-girder intersection details featuring top and bottom reinforcing bars, slab top bars, dowels, added horizontal bars each face, and closed type stirrups sized per the concrete beam schedule. Equal depth and unequal depth intersection configurations are detailed with girder bars placed below beam top bars.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
