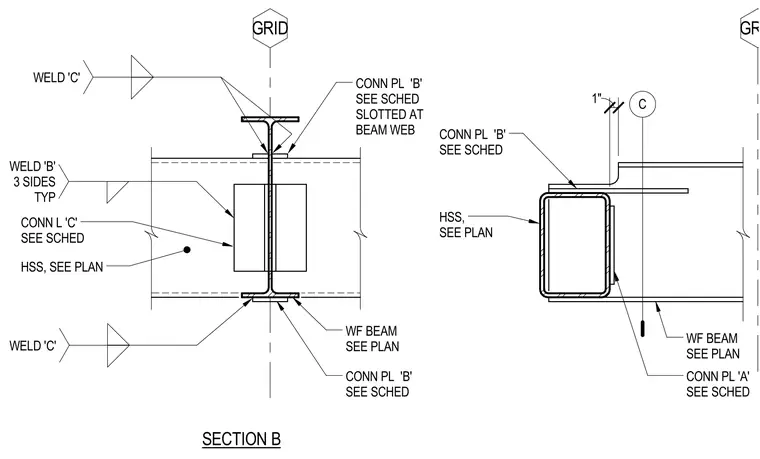

A cantilevered hollow structural section beam connection incorporates wide-flange beams and hollow structural section members sized per plan, tied together with connection plates 'A' and 'B' as well as connection angle 'C' per schedule. Connection plate 'B' features a slot at the wide-flange beam web. Welds 'B' are applied to three sides typically, while welds 'C' secure the flanged and plate interfaces.
GRID C CONN PL 'B' SEE SCHED CONN PL 'A' SEE SCHED HSS, SEE PLAN WF BEAM SEE PLAN WF BEAM SEE PLAN CONN PL 'B' SEE SCHED SLOTTED AT BEAM WEB SECTION B GRID WELD 'B' 3 SIDES TYP HSS, SEE PLAN 1" CONN L 'C' SEE SCHED CONN PL 'B' SEE SCHED WELD 'C' WELD 'C'
