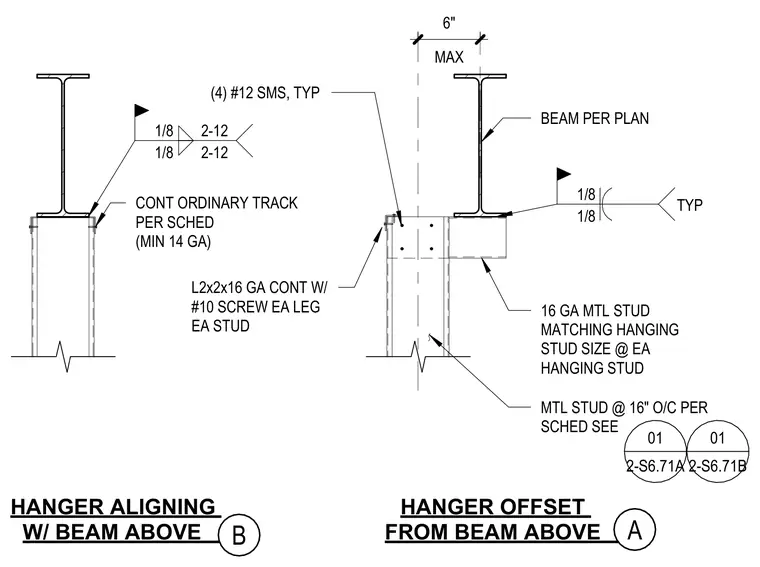

Cold-formed metal stud framing hangs from an overhead structural steel beam sized per plan. A continuous ordinary track with a minimum fourteen gauge thickness sits beneath the beam, secured with one-eighth inch fillet welds typical. A continuous two by two inch sixteen gauge angle fastens to each leg of each stud using number ten screws. For offset conditions, a sixteen gauge metal stud matches the hanging stud size at each hanging stud, secured with four number twelve sheet metal screws typical with a maximum six inch offset from the beam above.
BEAM PER PLAN CONT ORDINARY TRACK PER SCHED (MIN 14 GA) MTL STUD @ 16" O/C PER SCHED SEE MAX 6" 16 GA MTL STUD MATCHING HANGING STUD SIZE @ EA HANGING STUD (4) #12 SMS, TYP HANGER OFFSET FROM BEAM ABOVE HANGER ALIGNING W/ BEAM ABOVE A B 01 2-S6.71A 01 2-S6.71B 1/8 1/8 TYP 1/8 2-12 1/8 2-12 L2x2x16 GA CONT W/ #10 SCREW EA LEG EA STUD
