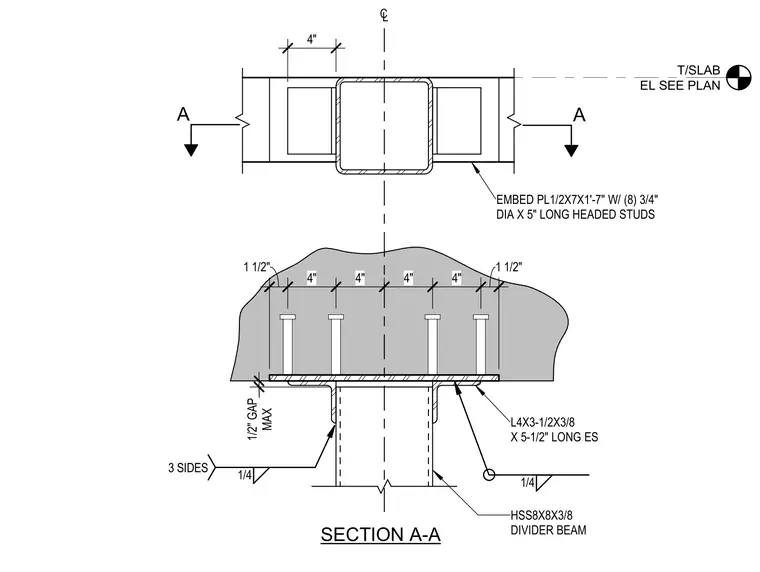

An HSS 8x8x3/8 divider beam connects to a concrete slab via a half-inch by 7-inch by 1-foot-7-inch embed plate welded with eight three-quarter-inch diameter by 5-inch long headed studs. L4x3-1/2x3/8 angles measuring 5-1/2 inches long are welded to each side of the beam with a quarter-inch fillet weld on three sides, leaving a maximum half-inch gap.
1 1/2" 4" 4" 4" 4" 1 1/2" C L A A T/SLAB EL SEE PLAN EMBED PL1/2X7X1'-7" W/ (8) 3/4" DIA X 5" LONG HEADED STUDS L4X3-1/2X3/8 X 5-1/2" LONG ES 1/4 4" HSS8X8X3/8 DIVIDER BEAM 1/4 3 SIDES MAX 1/2" GAP SECTION A-A
