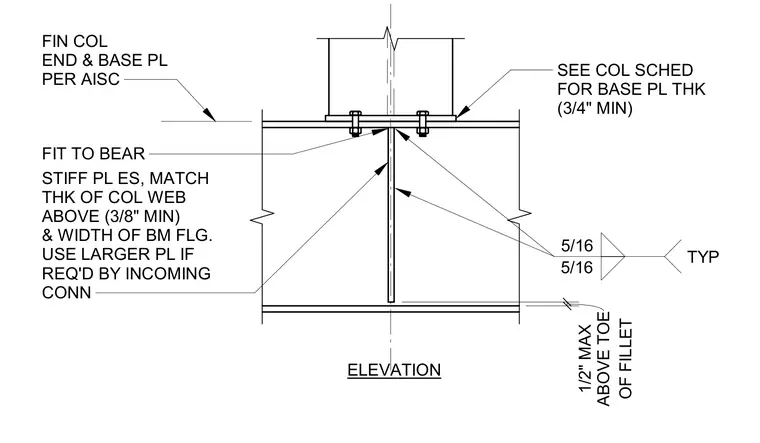

An upper steel column connects to a lower member via a base plate and end plate finished per American Institute of Steel Construction standards, with base plate thickness determined by the column schedule at three-quarters of an inch minimum. Vertical stiffener plates match the thickness of the column web above at three-eighths of an inch minimum and the width of the beam flange, with larger plates utilized if required by incoming connections. The connection is fitted to bear, positioned one-half inch maximum above the toe of the fillet. Fillet welds of five-sixteenths inch are applied typically on both sides of the internal stiffener plates.
ELEVATION SEE COL SCHED FOR BASE PL THK (3/4" MIN) FIN COL END & BASE PL PER AISC STIFF PL ES, MATCH THK OF COL WEB ABOVE (3/8" MIN) & WIDTH OF BM FLG. USE LARGER PL IF REQ'D BY INCOMING CONN OF FILLET 1/2" MAX ABOVE TOE FIT TO BEAR TYP 5/16 5/16
