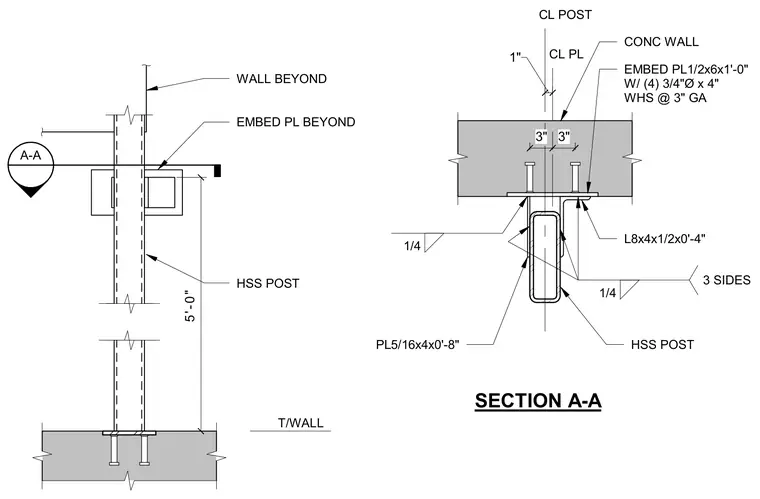

A hollow structural section post connects to a concrete wall via a half-inch by six-inch by one-foot embed plate anchored by four three-quarter-inch diameter by four-inch welded headed studs at three-inch gauge. An L8x4x1/2 angle measuring four inches long welds to the embed plate. A five-sixteenth by four-inch plate measuring zero feet eight inches long and an HSS post connect using quarter-inch fillet welds on three sides.
T/WALL A-A 5'-0" WALL BEYOND HSS POST EMBED PL BEYOND SECTION A-A L8x4x1/2x0'-4" HSS POST CONC WALL PL5/16x4x0'-8" 1/4 1/4 3 SIDES EMBED PL1/2x6x1'-0" W/ (4) 3/4"Ø x 4" WHS @ 3" GA CL POST CL PL 1" 3" 3"
