A structural steel column bears on a base plate atop a concrete footing, secured by four ASTM F1554 Grade 36 anchor rods with heavy hex nuts. The column end is finished for full bearing against the base plate. Washers are sized according to American Institute of Steel Construction recommendations. Anchor rod diameter and embedment are specified per schedule.

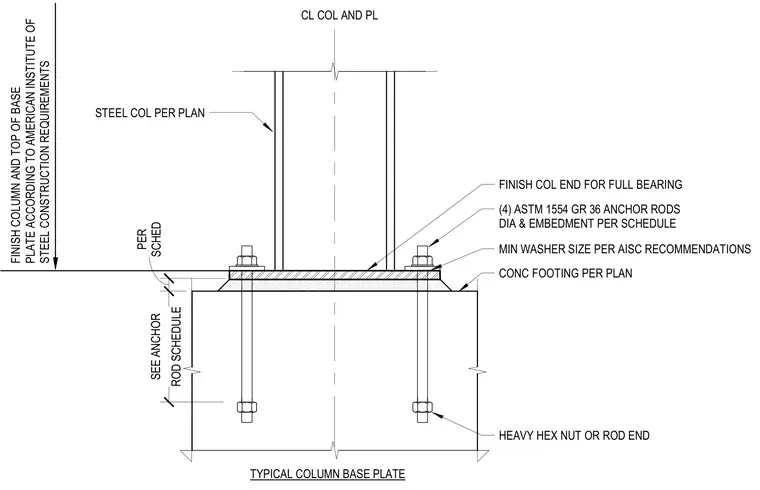

MIN WASHER SIZE PER AISC RECOMMENDATIONS STEEL COL PER PLAN TYPICAL COLUMN BASE PLATE HEAVY HEX NUT OR ROD END CONC FOOTING PER PLAN (4) ASTM 1554 GR 36 ANCHOR RODS DIA & EMBEDMENT PER SCHEDULE FINISH COL END FOR FULL BEARING CL COL AND PL ROD SCHEDULE SEE ANCHOR SCHED PER FINISH COLUMN AND TOP OF BASE PLATE ACCORDING TO AMERICAN INSTITUTE OF STEEL CONSTRUCTION REQUIREMENTS
