Structural · S-GSB2D

Large Framed Opening Framing and Reinforcement Plan

Materials

Steel

Elements

Beams Decks Connections / Plates Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

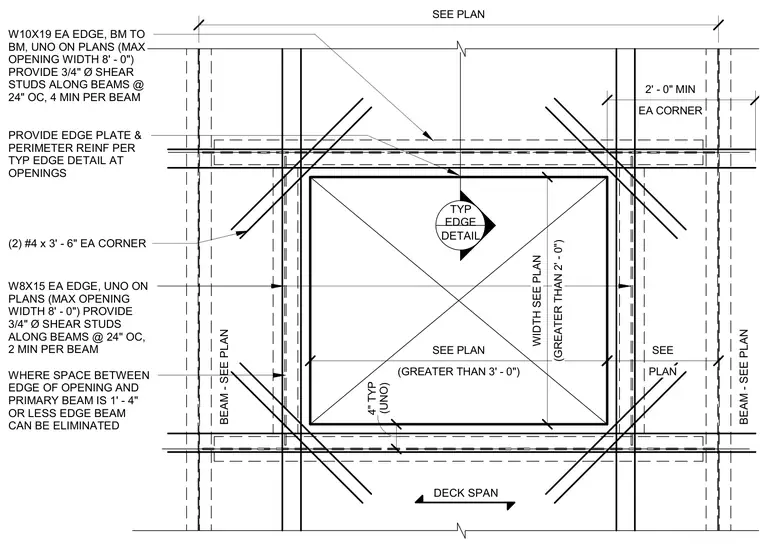

Framing requirements for a large framed opening up to eight feet wide in a steel deck assembly. Perimeter framing utilizes W10x19 or W8x15 steel beams configured per plan with three-quarter-inch diameter shear studs spaced at twenty-four inches on center, requiring a minimum of two or four studs per beam. Edge plates and perimeter reinforcement are provided per typical edge details at openings, supplemented by two number four reinforcing bars measuring three feet six inches long at each corner. Where the space between the edge of the opening and the primary beam measures one foot four inches or less, the edge beam may be eliminated.
