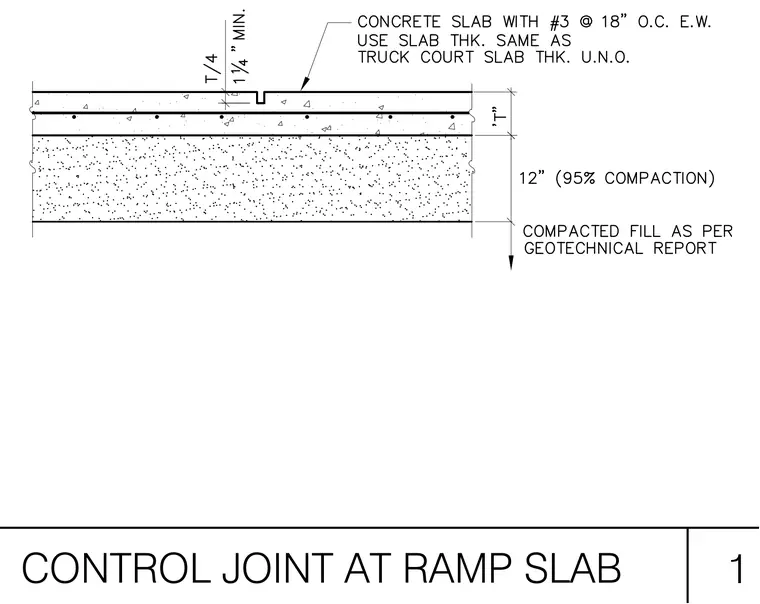

A concrete slab is reinforced with number three bars spaced at eighteen inches on center each way, matching the thickness of the truck court slab unless noted otherwise. The control joint depth is formed to one-quarter of the slab thickness with a minimum depth of one and one-quarter inches. The concrete slab bears on a twelve-inch compacted fill layer at ninety-five percent compaction over compacted fill specified by the geotechnical report.
