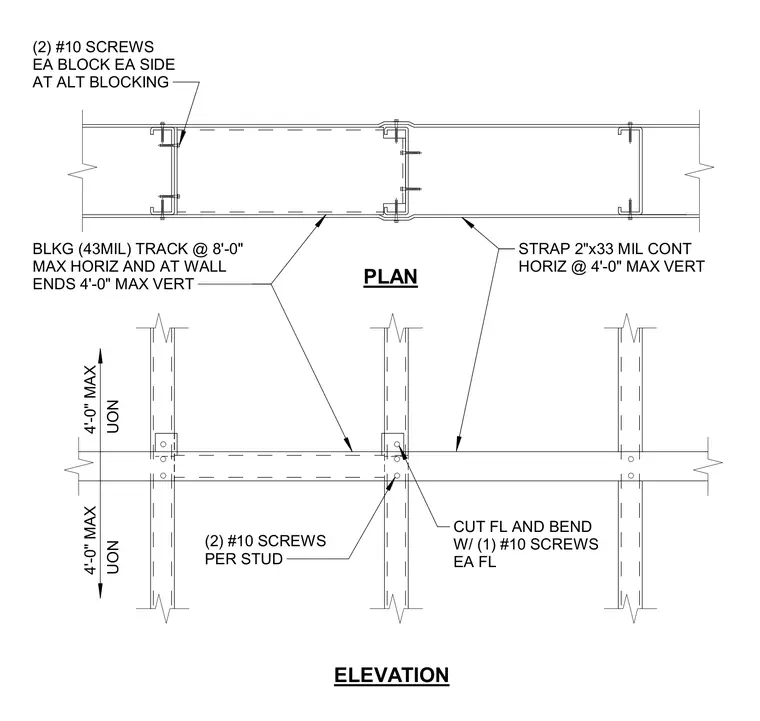

Cold-formed steel wall studs are braced horizontally using 43-mil track blocking spaced at eight feet maximum horizontally and four feet maximum vertically. A continuous two-inch by 33-mil horizontal steel strap is fastened across the studs at four-foot vertical intervals. Blocking is secured to each stud with two number 10 screws on each side at alternate blocking locations. Flanges are cut and bent with one number 10 screw in each flange, and two number 10 screws are installed per stud.
ELEVATION CUT FL AND BEND W/ (1) #10 SCREWS EA FL (2) #10 SCREWS PER STUD 4'-0" MAX UON 4'-0" MAX UON BLKG (43MIL) TRACK @ 8'-0" MAX HORIZ AND AT WALL ENDS 4'-0" MAX VERT (2) #10 SCREWS EA BLOCK EA SIDE AT ALT BLOCKING STRAP 2"x33 MIL CONT HORIZ @ 4'-0" MAX VERT PLAN
