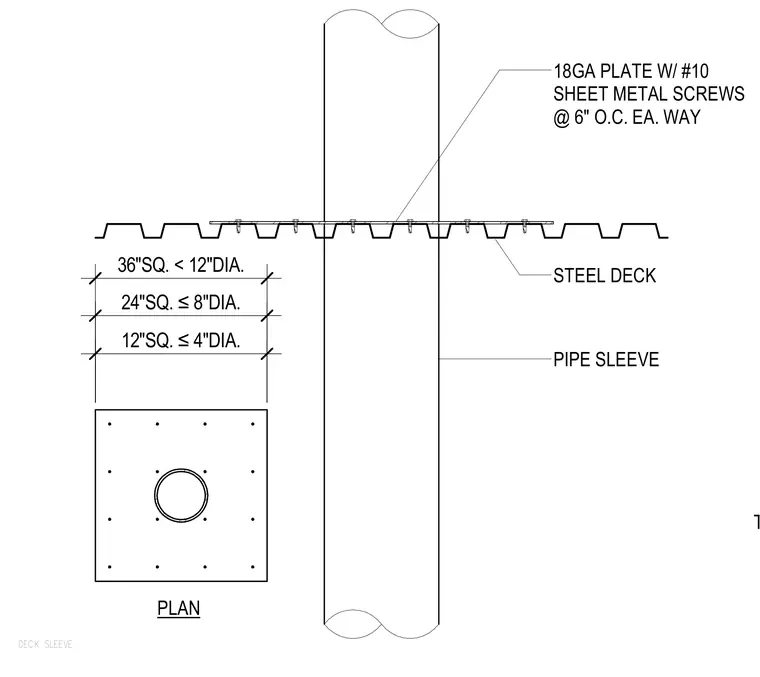

A vertical pipe sleeve penetrates through corrugated steel deck. An eighteen-gauge square steel plate surrounds the sleeve and fastens to the steel deck with number ten sheet metal screws spaced at six inches on center each way. Sizing criteria include a twelve-inch square plate for pipe diameters up to four inches, a twenty-four-inch square plate for pipe diameters up to eight inches, and a thirty-six-inch square plate for pipe diameters under twelve inches.
TYP DECK SLEEVE PLAN STEEL DECK PIPE SLEEVE 18GA PLATE W/ #10 SHEET METAL SCREWS @ 6" O.C. EA. WAY 24"SQ. ≤ 8"DIA. 36"SQ. < 12"DIA. 12"SQ. ≤ 4"DIA.
