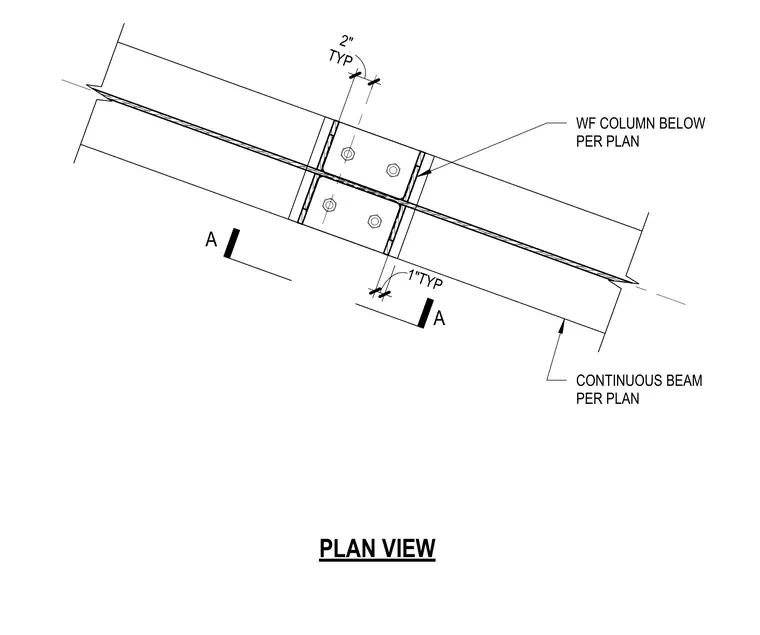

A continuous wide-flange beam spans over a wide-flange column below, sized per plan. Four bolts secure the connection at the column flange with specified clearances. Two-inch typical dimensions mark the spacing and offset from the column centerline. A one-inch typical clearance is maintained at the beam flange interface.
