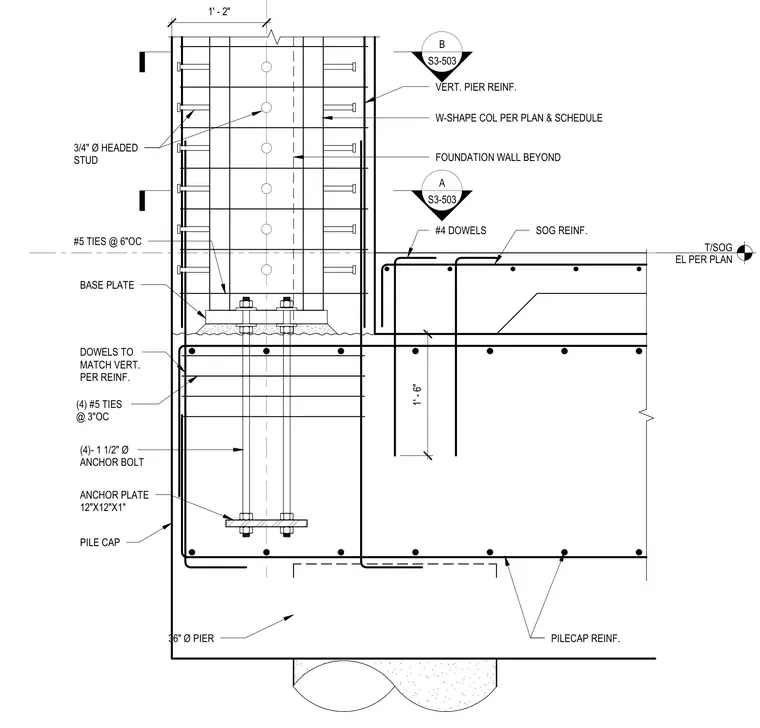

A wide-flange steel column is embedded into a concrete pier and anchored to a pile cap via a base plate and four 1-1/2-inch diameter anchor bolts extending down to a 12x12x1-inch anchor plate. Three-quarter-inch diameter headed studs are welded to the steel column flanges for composite action within the pier concrete. The concrete pier is reinforced with vertical pier reinforcement and number 5 ties spaced at 6 inches on center, transitioning to number 5 ties spaced at 3 inches on center within the pile cap zone. Number 4 dowels tie the foundation wall and slab-on-grade reinforcement into the pier assembly.
1' - 2" 36" Ø PIER PILE CAP ANCHOR PLATE 12"X12"X1" (4)- 1 1/2" Ø ANCHOR BOLT DOWELS TO MATCH VERT. PER REINF. BASE PLATE 1' - 6" #5 TIES @ 6"OC 3/4" Ø HEADED STUD VERT. PIER REINF. W-SHAPE COL PER PLAN & SCHEDULE FOUNDATION WALL BEYOND #4 DOWELS SOG REINF. T/SOG EL PER PLAN (4) #5 TIES @ 3"OC PILECAP REINF. A S3-503 B S3-503
