Keyed concrete construction joints are positioned as designated by concrete construction joint callouts where shown on the plan. Dimensions indicate a minimum of one foot six inches and a maximum of three feet for round column conditions, and two feet to four feet for square column conditions. Columns are omitted for clarity per the drawing note, directing the builder to consult the structural framing plan for specific closure pour configurations.

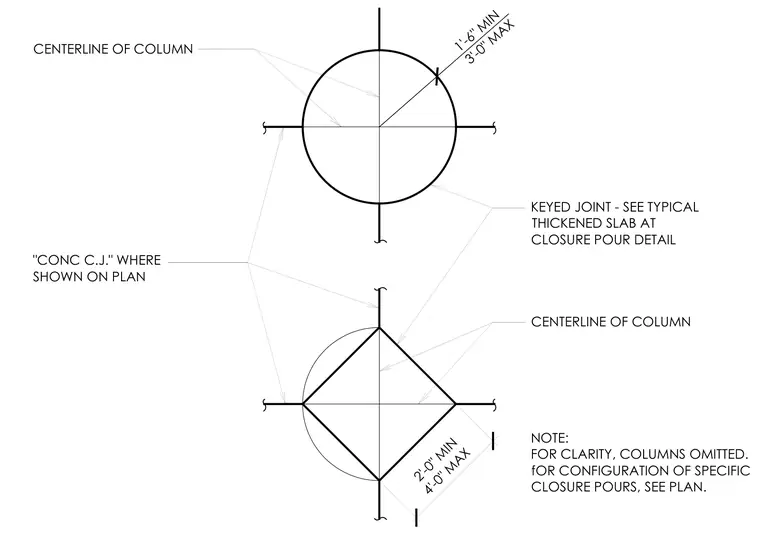

CENTERLINE OF COLUMN "CONC C.J." WHERE SHOWN ON PLAN KEYED JOINT - SEE TYPICAL THICKENED SLAB AT CLOSURE POUR DETAIL 1'-6" MIN 3'-0" MAX NOTE: FOR CLARITY, COLUMNS OMITTED. fOR CONFIGURATION OF SPECIFIC CLOSURE POURS, SEE PLAN. CENTERLINE OF COLUMN 2'-0" MIN 4'-0" MAX 5 5 5 5
