A structural steel column base plate is detailed with three-eighths-inch thick by four-inch by zero-foot-six-inch shear plates centered on each side. The shear plates are welded to both the embed and base plates with one-quarter-inch fillet welds. Anchor bolts secure the base plate assembly to the corresponding embed plate layout shown adjacently.

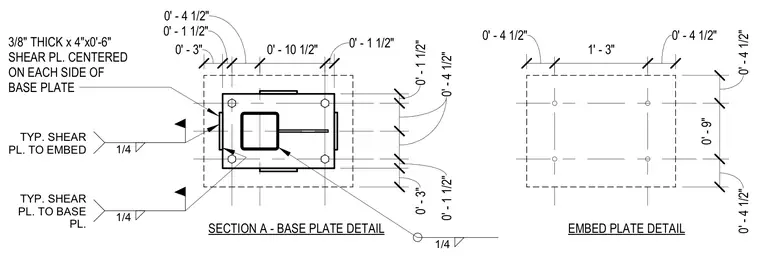

0' - 3" 0' - 1 1/2" 0' - 4 1/2" 0' - 10 1/2" 0' - 1 1/2" 0' - 4 1/2" 1' - 3" 0' - 4 1/2" 0' - 1 1/2" 0' - 4 1/2" 0' - 4 1/2" 0' - 1 1/2" 0' - 3" 0' - 4 1/2" 0' - 9" 0' - 4 1/2" SECTION A - BASE PLATE DETAIL EMBED PLATE DETAIL 1/4 1/4 TYP. SHEAR PL. TO EMBED 1/4 TYP. SHEAR PL. TO BASE PL. 3/8" THICK x 4"x0'-6" SHEAR PL. CENTERED ON EACH SIDE OF BASE PLATE
