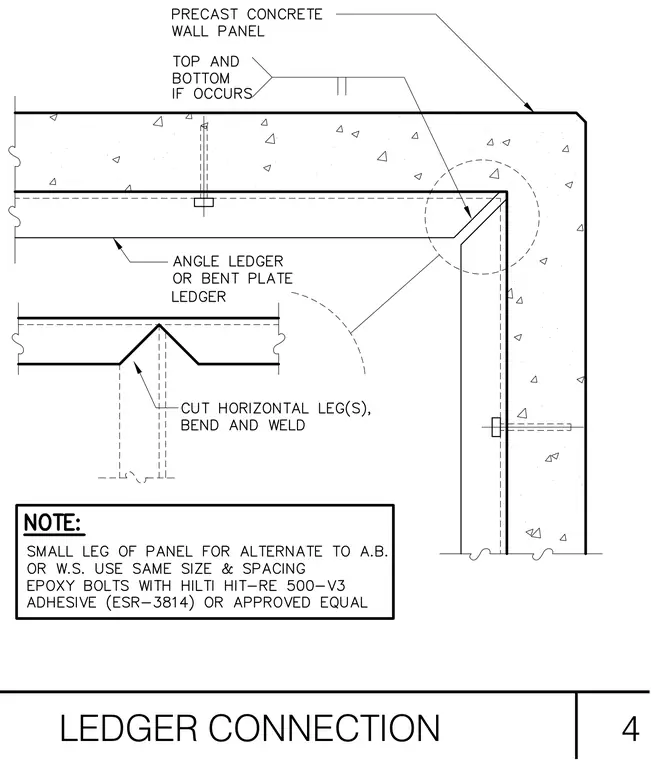

An angle ledger or bent plate ledger connects to a precast concrete wall panel using anchor bolts or epoxy bolts with Hilti HIT-RE 500-V3 adhesive. At corners, the horizontal leg of the ledger angle is cut, bent, and welded at the top and bottom if occurs. Alternate connections use epoxy bolts installed per manufacturer specifications.
