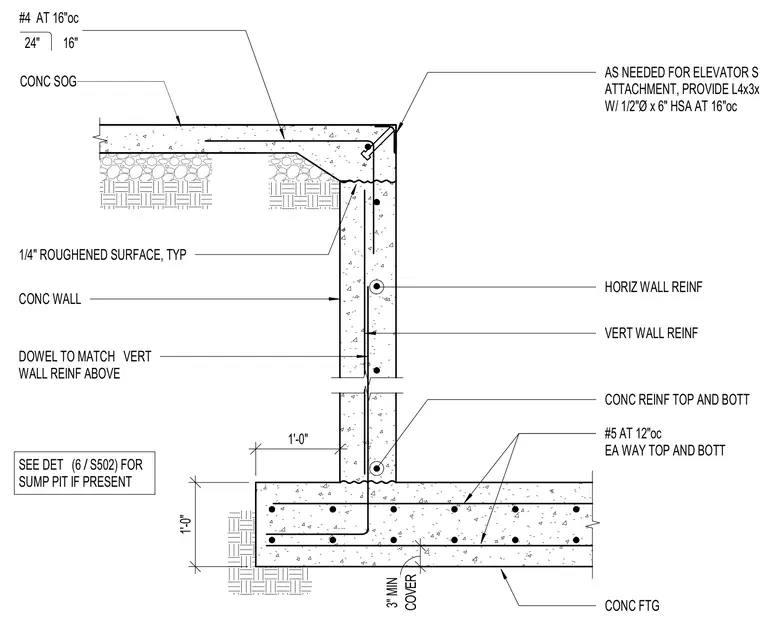

A concrete elevator pit wall bears on a concrete footing with number 5 reinforcing bars at twelve inches on center each way top and bottom, featuring a roughened construction joint surface. A structural steel angle measuring 4x3x1/4 with half-inch diameter by six-inch heavy stud anchors at sixteen inches on center is embedded at the top wall corner as needed for elevator sill attachment. The concrete slab-on-grade ties into the wall with number 4 bars at sixteen inches on center, and vertical wall reinforcing dowels match the reinforcement from the wall above. The concrete footing requires a three-inch minimum cover over all embedded reinforcing steel.
CONC WALL DOWEL TO MATCH VERT WALL REINF ABOVE CONC FTG AS NEEDED FOR ELEVATOR SILL ATTACHMENT, PROVIDE L4x3x1/4 LLV W/ 1/2"Ø x 6" HSA AT 16"oc HORIZ WALL REINF VERT WALL REINF CONC REINF TOP AND BOTT #5 AT 12"oc EA WAY TOP AND BOTT CONC SOG 24" 16" #4 AT 16"oc 1/4" ROUGHENED SURFACE, TYP COVER 3" MIN 1'-0" 1'-0" SEE DET FOR SUMP PIT IF PRESENT / (6 S502)
