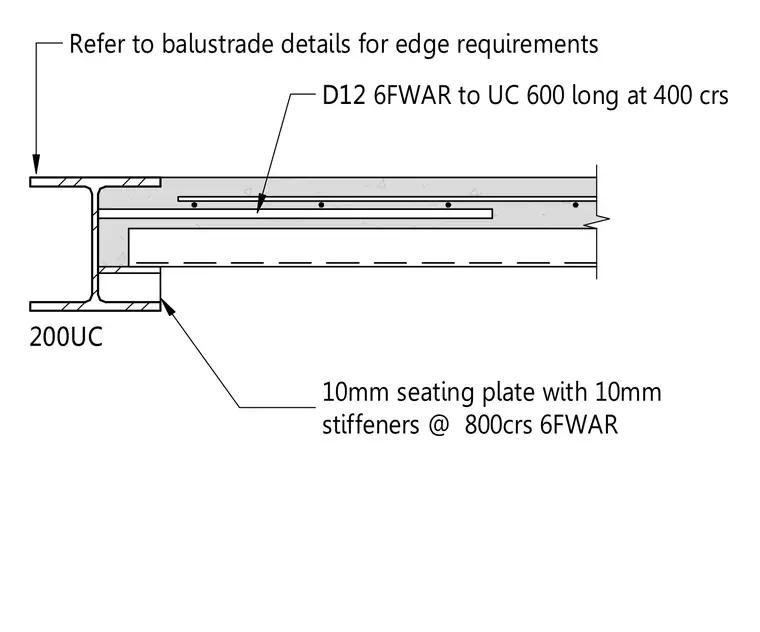

A Comflor SR composite slab bears perpendicularly onto a 200UC steel universal column. A ten millimeter seating plate with ten millimeter stiffeners spaced at eight hundred millimeter centers supports the slab edge. Reinforcing bars including D12 and 6FWAR mesh are positioned within the concrete topping over the deck. Edge requirements for balustrades are coordinated per separate details.
D12 6FWAR to UC 600 long at 400 crs 10mm seating plate with 10mm stiffeners @ 800crs 6FWAR 200UC Refer to balustrade details for edge requirements
