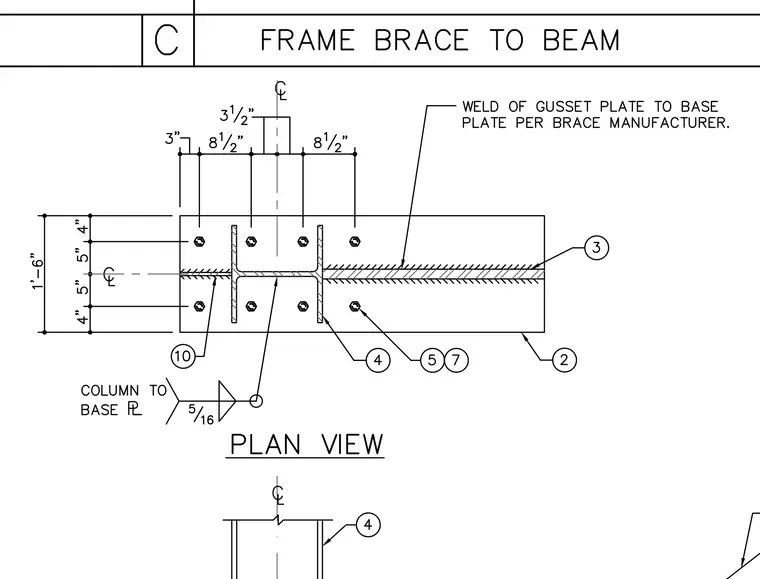

A structural frame brace connects to a supporting beam using a gusset plate assembly anchored with bolts. The connection utilizes a five-sixteenths inch fillet weld for the column to base plate joint as indicated by the weld symbol. Dimensions detail bolt spacings and plate alignments relative to the centerline.
