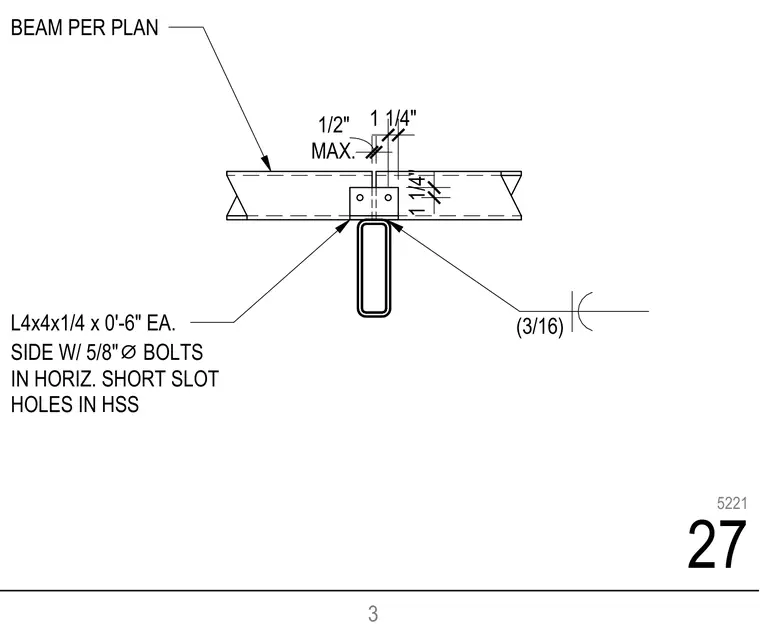

A structural beam connects to an HSS column or member using two L4x4x1/4 by six-inch angle clips placed on each side. The angles are fastened with 5/8-inch diameter bolts through horizontal short slot holes in the HSS beam per plan. A maximum half-inch clearance is maintained at the joint, with one and one-quarter inch edge distances and spacing. A three-sixteenths inch fillet weld secures the angle assembly.
1 1/4" (3/16) 1 1/4" MAX. 1/2" L4x4x1/4 x 0'-6" EA. SIDE W/ 5/8" ⌀ BOLTS IN HORIZ. SHORT SLOT HOLES IN HSS BEAM PER PLAN 3 27 5221
