Structural · S-GQC8E

Non-Frame Beam to HSS Pipe Column Moment Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection HSS Connection

About this detail

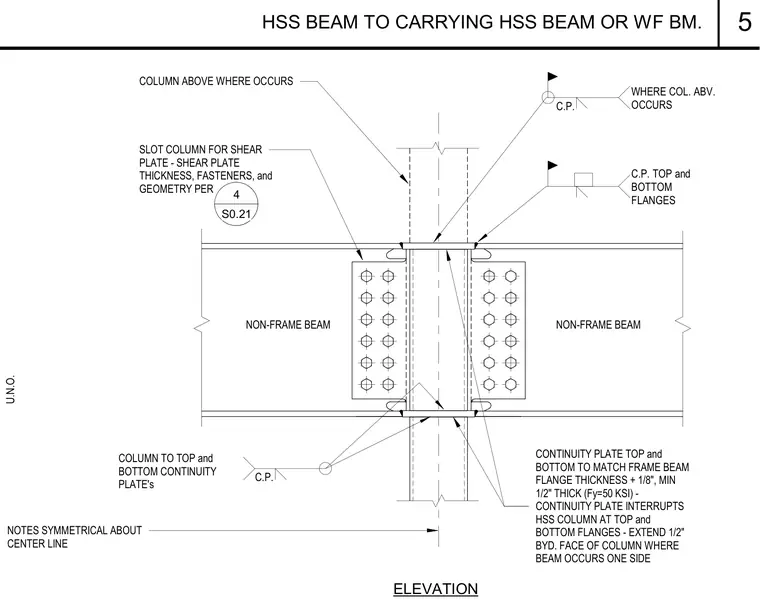

A non-frame beam frames into an HSS or pipe column with a moment connection. Continuity plates at the top and bottom align with the frame beam flange thickness plus one-eighth inch, with a minimum thickness of one-half inch and yield strength of fifty KSI, interrupting the HSS column at the top and bottom flanges and extending one-half inch beyond the face of the column where the beam occurs on one side. The HSS column is slotted for a shear plate whose thickness, fasteners, and geometry are sized per plan. The column continues above where it occurs, and the assembly is symmetrical about the center line.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
