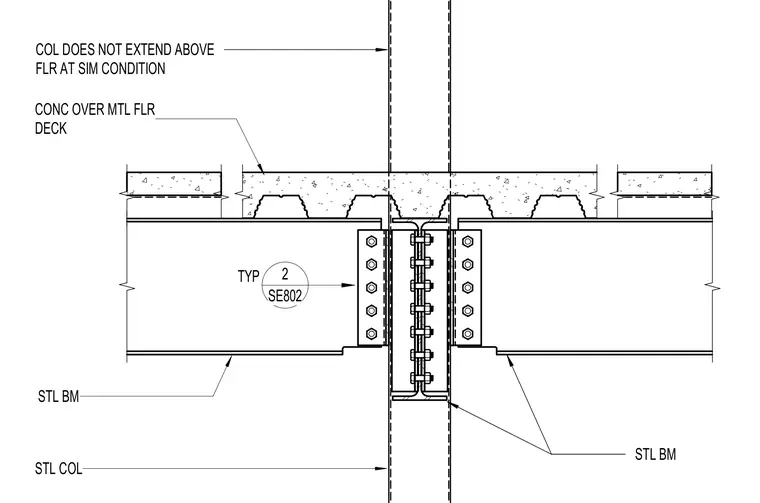

A steel column terminates below a concrete over metal floor deck at a similar condition where the column does not extend above the floor. Steel beams frame into the column flanges using bolted connections with shear tabs. The concrete slab spans continuously over the top of the steel beams and column termination point.
STL COL STL BM COL DOES NOT EXTEND ABOVE FLR AT SIM CONDITION CONC OVER MTL FLR DECK STL BM 2 SE802 TYP
