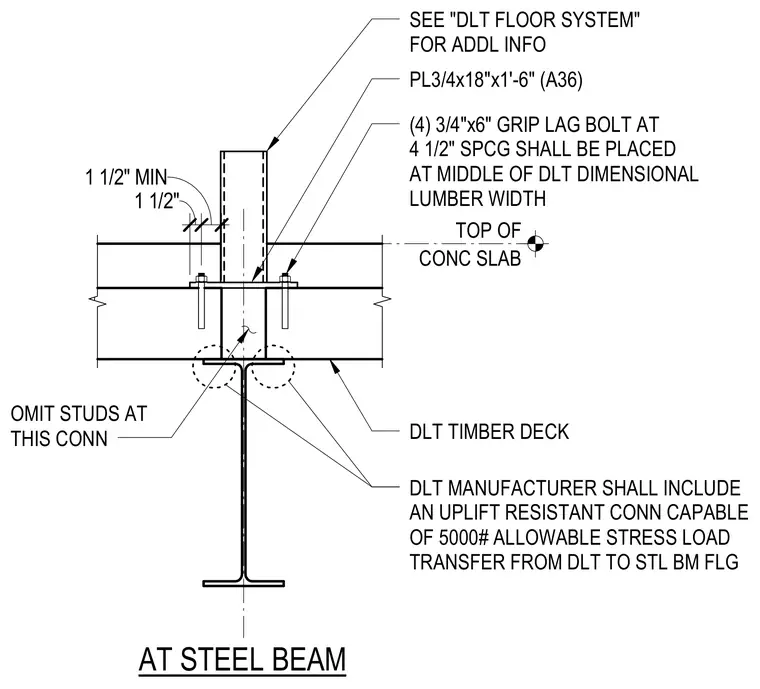

A dowel laminated timber deck bears directly on a steel beam flange with shear studs omitted at this connection location. An ASTM A36 steel plate measuring 3/4 inch by 18 inches by 1 foot 6 inches is secured with four 3/4-inch by 6-inch grip lag bolts spaced at 4-1/2 inches on center and placed at the middle of the timber width. The manufacturer provides an uplift-resistant connection capable of 5000 pounds allowable stress load transfer from the timber deck to the steel beam flange.
AT STEEL BEAM (4) 3/4"x6" GRIP LAG BOLT AT 4 1/2" SPCG SHALL BE PLACED AT MIDDLE OF DLT DIMENSIONAL LUMBER WIDTH PL3/4x18"x1'-6" (A36) OMIT STUDS AT THIS CONN 1 1/2" 1 1/2" MIN SEE "DLT FLOOR SYSTEM" FOR ADDL INFO DLT TIMBER DECK DLT MANUFACTURER SHALL INCLUDE AN UPLIFT RESISTANT CONN CAPABLE OF 5000# ALLOWABLE STRESS LOAD TRANSFER FROM DLT TO STL BM FLG CONC SLAB TOP OF
