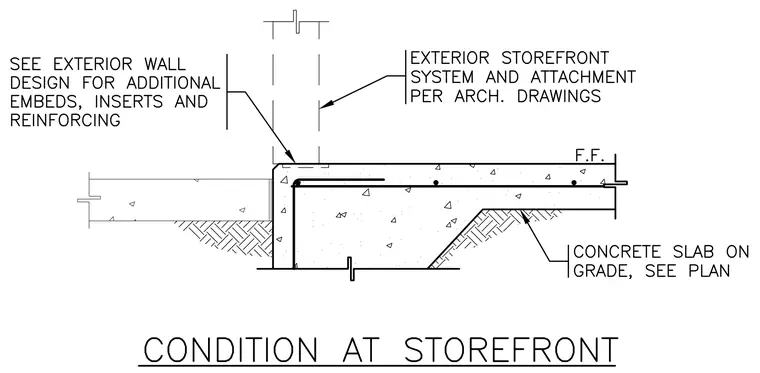

An exterior storefront system sits atop a reinforced concrete slab on grade and thickened edge foundation. The assembly includes embedded reinforcing steel within the concrete slab and a thickened footing bearing on compacted subgrade. Additional embeds, inserts, and reinforcing are coordinated per exterior wall design, with the storefront attachment detailed per architectural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
