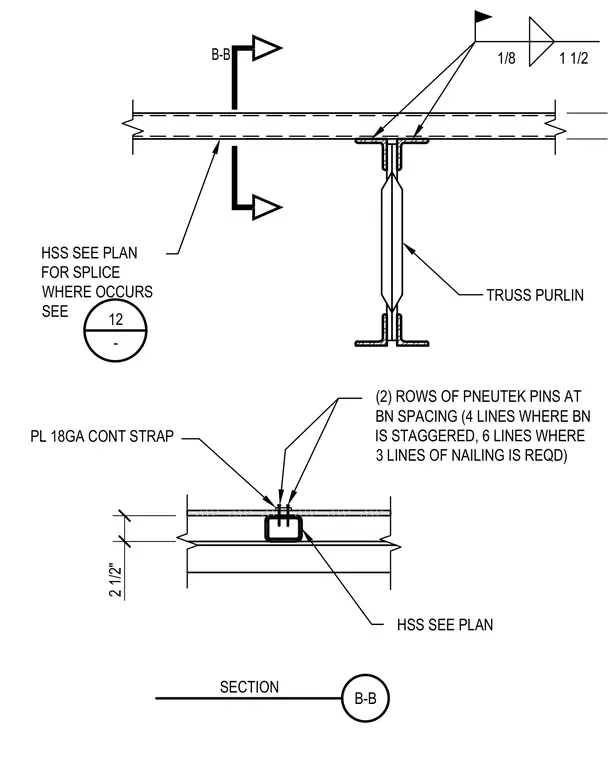

A hollow structural section member sits perpendicular to a truss purlin, joined with an 18-gauge continuous steel strap. The strap is fastened using two rows of Pneutek pins at beam-nailing spacing, increasing to four lines when staggered and six lines when three lines of nailing are required. A splice condition is detailed per plan, referencing a secondary sheet detail.
TRUSS PURLIN B-B 1/8 1 1/2 HSS SEE PLAN FOR SPLICE WHERE OCCURS SEE 12 - 2 1/2" HSS SEE PLAN PL 18GA CONT STRAP B-B SECTION (2) ROWS OF PNEUTEK PINS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
