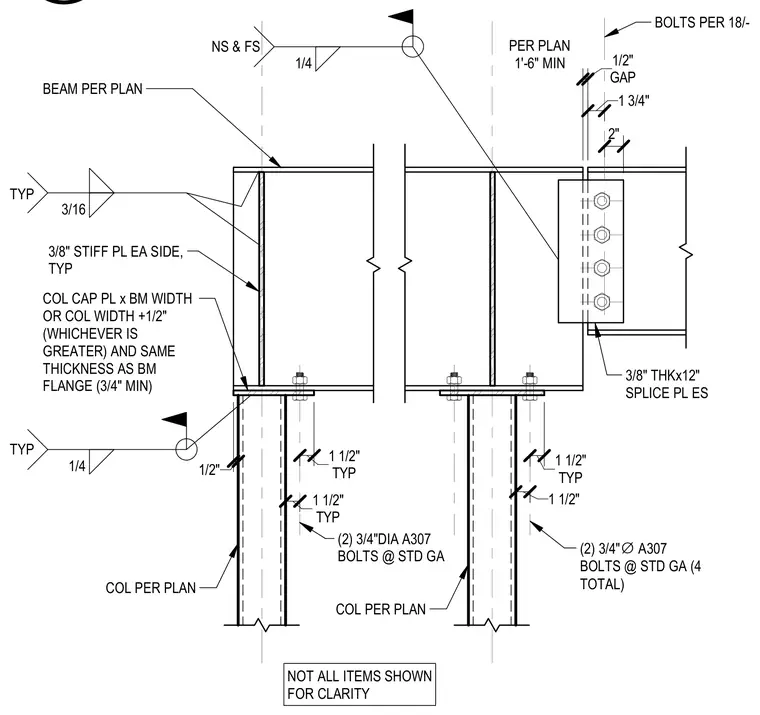

A steel beam frames into the top of a column with a welded column cap plate and stiffener plates. A column cap plate matches the beam width or column width plus one-half inch, whichever is greater, with a thickness equal to the beam flange and a minimum three-quarter inch thickness. Three-eighths-inch thick stiffener plates are welded to each side of the column web using three-sixteenths-inch fillet welds. The beam is secured with two three-quarter-inch diameter A307 bolts at standard gauge through the cap plate on each side. A three-eighths-inch thick by twelve-inch splice plate is attached on each side with four three-quarter-inch diameter A307 bolts, maintaining a one-half-inch gap between structural members.
2" 1 3/4" GAP 1/2" BOLTS PER 18/- PER PLAN 1'-6" MIN 3/8" THKx12" SPLICE PL ES TYP 1 1/2" 1 1/2" (2) 3/4" ∅ A307 BOLTS @ STD GA (4 TOTAL) 1/4 NS & FS TYP 1 1/2" TYP 1 1/2" (2) 3/4"DIA A307 BOLTS @ STD GA COL PER PLAN COL PER PLAN 1/2" 1/4 TYP COL CAP PL x BM WIDTH OR COL WIDTH +1/2" (WHICHEVER IS GREATER) AND SAME THICKNESS AS BM FLANGE (3/4" MIN) 3/8" STIFF PL EA SIDE, TYP 3/16 TYP BEAM PER PLAN NOT ALL ITEMS SHOWN FOR CLARITY
