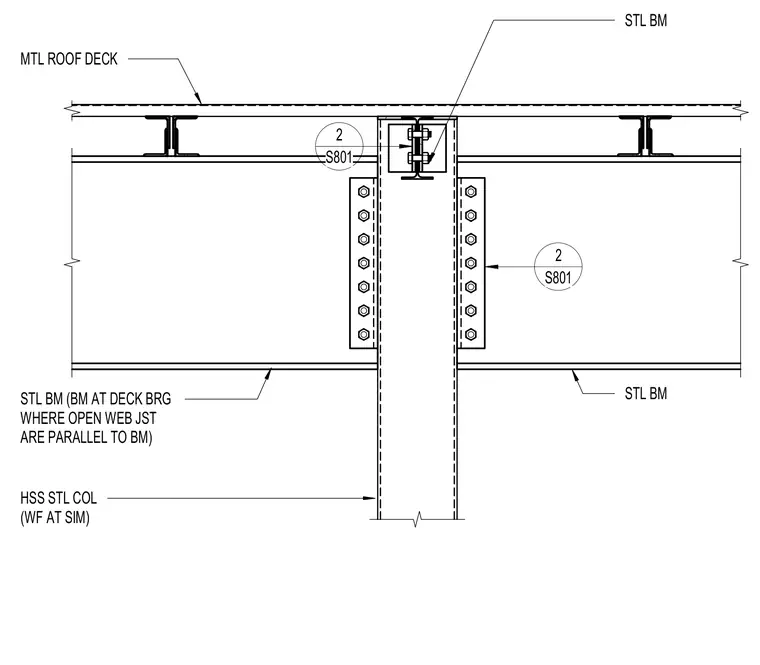

Steel beams frame into a hollow structural section steel column using bolted shear tabs, with a metal roof deck bearing across the top flanges. Additional framing members connect near the column top with bolted connections beneath the deck. Beam bearing conditions adapt where open web joists run parallel to the structural steel beams.
HSS STL COL (WF AT SIM) MTL ROOF DECK STL BM STL BM STL BM (BM AT DECK BRG WHERE OPEN WEB JST ARE PARALLEL TO BM) 2 S801 2 S801
