CMU Wall Reinforcement at Openings and Corners

Elements

Beams Walls Foundations / Footings Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

About this detail

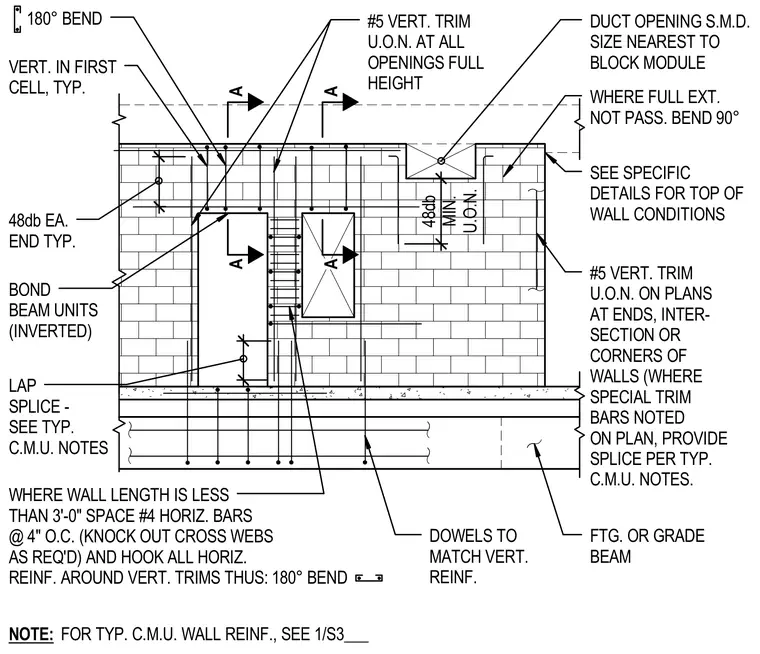

Structural reinforcement requirements for concrete masonry unit walls at vertical trims, duct openings, and wall intersections. Number 5 vertical trim bars are specified at all openings and wall ends unless otherwise noted, complete with one-hundred-eighty-degree bends and forty-eight bar diameter lap splices. Inverted bond beam units run continuously with horizontal reinforcing hooked around vertical bars. Spacing for number 4 horizontal bars is adjusted to four inches on center at shorter wall lengths by knocking out cross webs as required. Vertical dowels from the footing or grade beam match the vertical wall reinforcing size and spacing.
