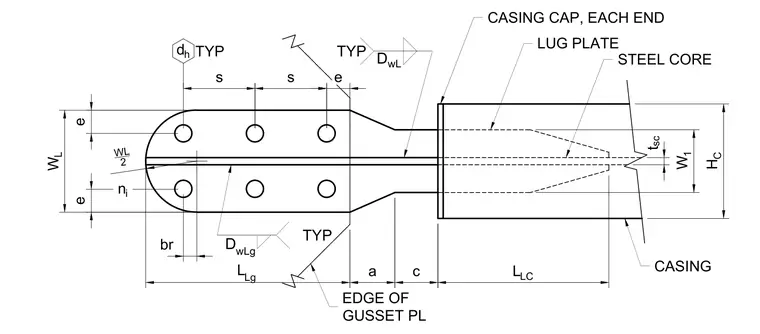

A structural end connection detail shows a lug plate attached to a steel core with thickness tsc, housed within a casing and terminated with a casing cap at each end. A lug plate with width WL and length LLg connects to a gusset plate using multiple bolts with hole diameter dh spaced at distance s with edge distance e. Fillet welds connect the transition of the lug plate and gusset plate assembly.
a c L LC L Lg br D wLg TYP WL 2 W L e e s s e n i STEEL CORE D wL TYP d h TYP W 1 t sc H C CASING LUG PLATE CASING CAP, EACH END EDGE OF GUSSET PL
