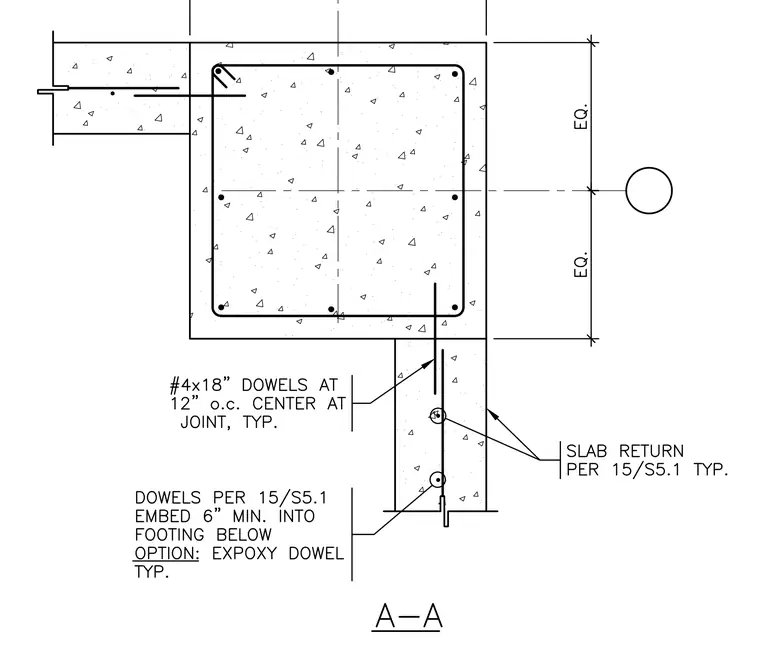

A reinforced concrete column connects to intersecting concrete walls using number four by eighteen-inch dowels placed at twelve inches on center at the joint typically. Slab returns per detail fifteen on sheet S5.1 tie into the assembly. Additional dowels per detail fifteen on sheet S5.1 require a minimum six-inch embedment into the footing below with an option for epoxy dowels typically.
