A single-sided framing connection joins a supported steel beam to a supporting steel beam web using a shear tab welded to the web and bolted to the supported member. Full-height 3/8-inch stiffener plates measuring 3/8 inch by 4 inches minimum are welded to match the beam flange width on each side. Fillet welds of 1/4-inch size are specified on three sides for the stiffener and two sides at the connection interface. Backup plates are welded but omitted from view for clarity.

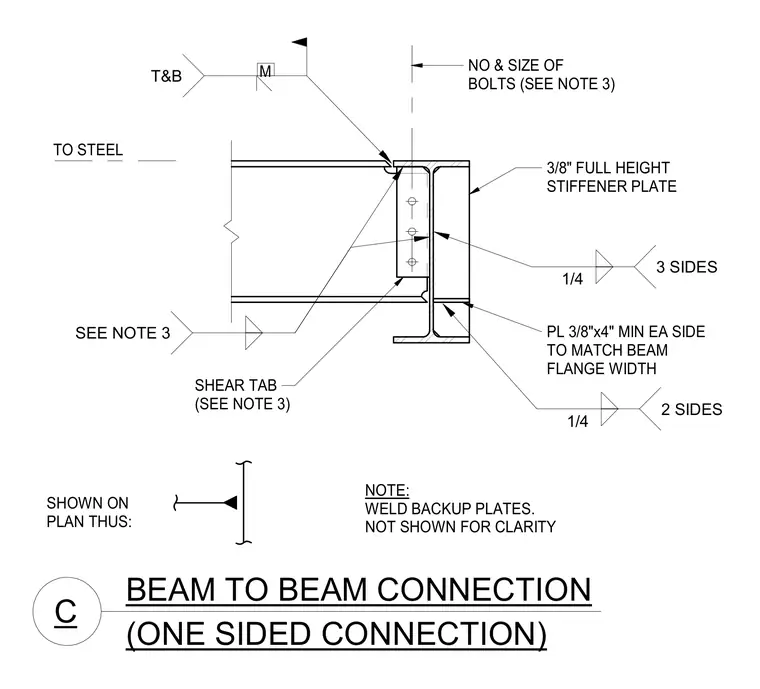

BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
