Eyebrow Soffit Framing and Steel Beam Detail

Materials

Elements

About this detail

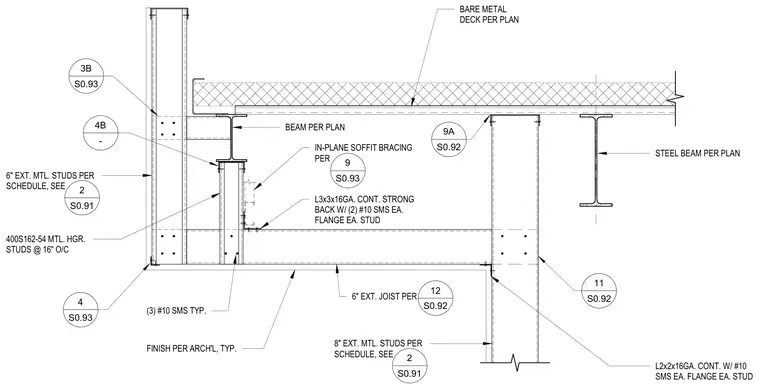

An eyebrow soffit framing assembly features 400S162-54 cold-formed metal hanger studs spaced at 16 inches on center, backed by continuous 3x3x16-gauge angles fastened with two number 10 self-tapping metal screws on each flange of each stud. The assembly includes 6-inch and 8-inch exterior metal studs per the schedule, in-plane soffit bracing, and continuous L2x2x16-gauge angles attached with number 10 self-tapping metal screws on each flange of each stud. Bare metal deck bears over steel beams sized per plan, with 6-inch exterior joists and typical architectural finishes completing the assembly.
