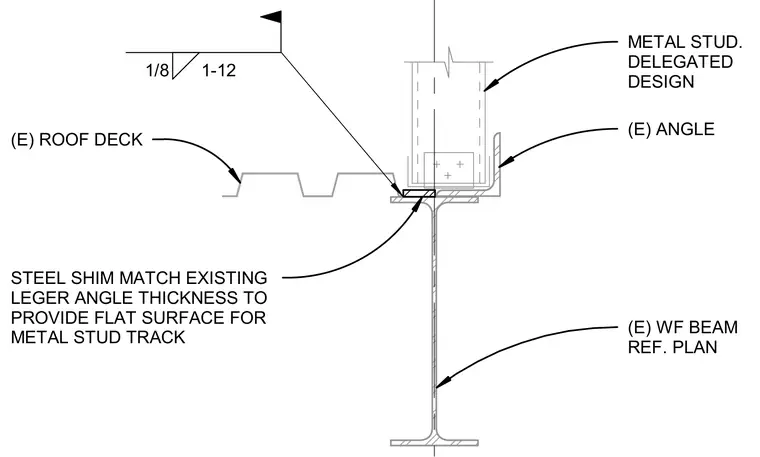

A metal stud track of delegated design bears on an existing wide flange beam adjacent to the existing roof deck. An existing angle is fastened to support the stud assembly, with a steel shim provided to match the existing ledger angle thickness and create a flat surface for the metal stud track. A one-eighth-inch fillet weld secures the assembly.
(E) ROOF DECK (E) WF BEAM REF. PLAN METAL STUD. DELEGATED DESIGN STEEL SHIM MATCH EXISTING LEGER ANGLE THICKNESS TO PROVIDE FLAT SURFACE FOR METAL STUD TRACK (E) ANGLE 1/8 1-12
