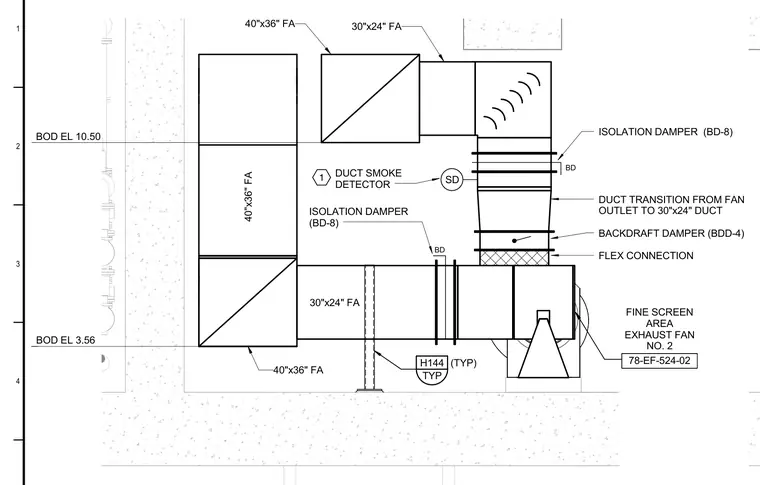

The fine screen area exhaust fan number two connects to a rectangular duct transition that steps down from forty inches by thirty-six inches to thirty inches by twenty-four inches. A flexible connection and backdraft damper are installed directly above the fan discharge, followed by an isolation damper and a duct smoke detector. Additional isolation dampers are integrated into the forty-inch by thirty-six-inch and thirty-inch by twenty-four-inch duct network. Hanger supports designated as H144 typically secure the horizontal duct runs above the bottom of duct elevations.
40"x36" FA 40"x36" FA 40"x36" FA 30"x24" FA 30"x24" FA 78-EF-524-02 FINE SCREEN AREA EXHAUST FAN NO. 2 BD ISOLATION DAMPER (BD-8) BACKDRAFT DAMPER (BDD-4) FLEX CONNECTION SD BD ISOLATION DAMPER (BD-8) BOD EL 10.50 BOD EL 3.56 DUCT TRANSITION FROM FAN OUTLET TO 30"x24" DUCT TYP H144 (TYP) 1 DUCT SMOKE DETECTOR 4 3 2 1
