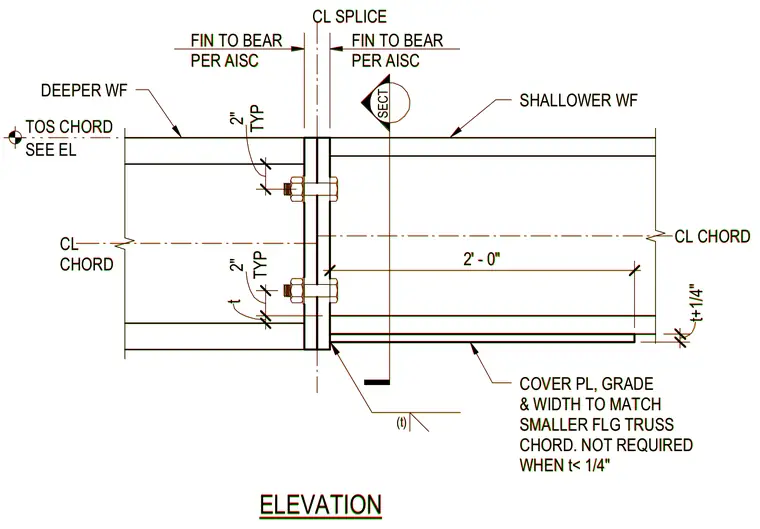

A truss chord splice connects a deeper wide-flange member and a shallower wide-flange member at a centerline splice. The connection utilizes vertical splice fins designed to bear per AISC standards, secured with bolts positioned with typical two-inch clearances from the chord centerline. A two-foot-long cover plate matching the grade and width of the smaller flange truss chord is added on the underside, with a thickness matching the web or plate thickness plus one-quarter inch. The cover plate is omitted when the plate thickness is less than one-quarter inch.
SECT ELEVATION CL SPLICE CL CHORD CL CHORD TYP 2" t TYP 2" (t) DEEPER WF SHALLOWER WF 2' - 0" SEE EL TOS CHORD COVER PL, GRADE & WIDTH TO MATCH SMALLER FLG TRUSS CHORD. NOT REQUIRED WHEN t< 1/4" t+1/4" FIN TO BEAR PER AISC FIN TO BEAR PER AISC SECT ELEVATION CL SPLICE CL CHORD CL CHORD TYP 2" t TYP 2" (t) DEEPER WF SHALLOWER WF 2' - 0" SEE EL TOS CHORD COVER PL, GRADE & WIDTH TO MATCH SMALLER FLG TRUSS CHORD. NOT REQUIRED WHEN t< 1/4" t+1/4" FIN TO BEAR PER AISC FIN TO BEAR PER AISC
