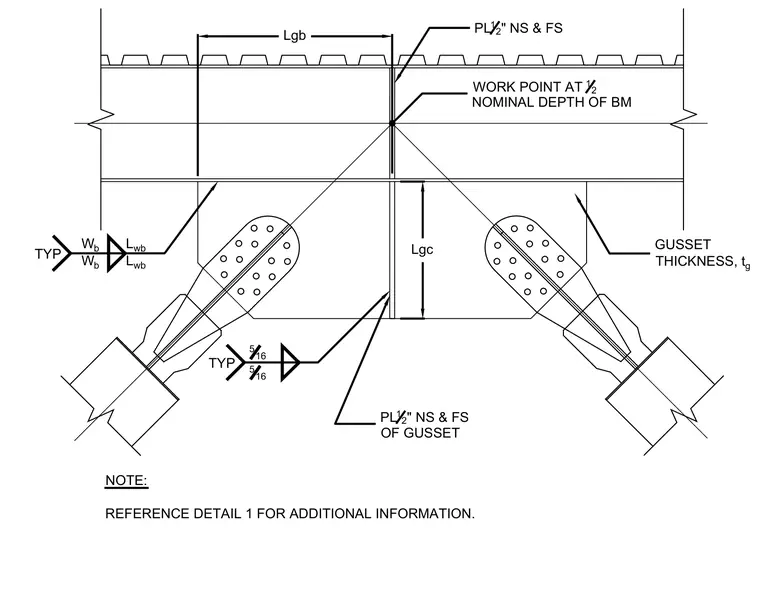

A CoreBrace buckling-restrained brace connects to a gusset plate using a bolted lug configuration at a chevron brace layout. The gusset plate features a specified thickness tg and is welded to the supporting beam with typical fillet welds on the near side and far side. A plate thickness of one-half inch is detailed on both the near side and far side of the gusset. The work point aligns at one-half the nominal depth of the beam.
NOTE: REFERENCE DETAIL 1 FOR ADDITIONAL INFORMATION. 516 TYP Lgb Lgc TYP W b W b L wb L wb 516 PL 12 " NS & FS OF GUSSET PL 12 " NS & FS WORK POINT AT 12 NOMINAL DEPTH OF BM GUSSET THICKNESS, t g
