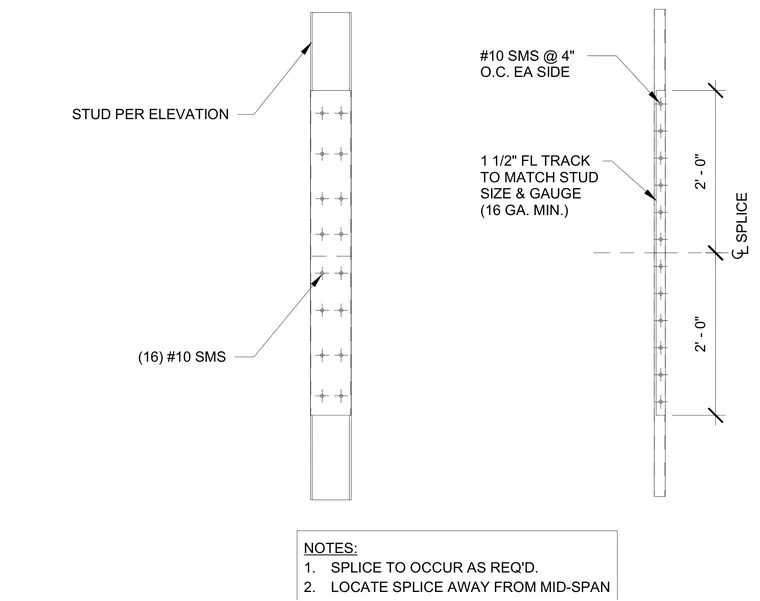

Cold-formed steel studs are spliced end-to-end using an internal nesting flange track sized to match the stud profile with a minimum sixteen gauge thickness. The splice length extends two feet on either side of the centerline for a total overlap length of four feet. Sixteen number ten self-drilling metal screws spaced at four inches on center secure each side of the connection. The splice location must be positioned away from mid-span as required by structural design.
2' - 0" 2' - 0" SPLICE #10 SMS @ 4" O.C. EA SIDE 1 1/2" FL TRACK TO MATCH STUD SIZE & GAUGE (16 GA. MIN.) STUD PER ELEVATION (16) #10 SMS NOTES: 1. SPLICE TO OCCUR AS REQ'D. 2. LOCATE SPLICE AWAY FROM MID-SPAN
