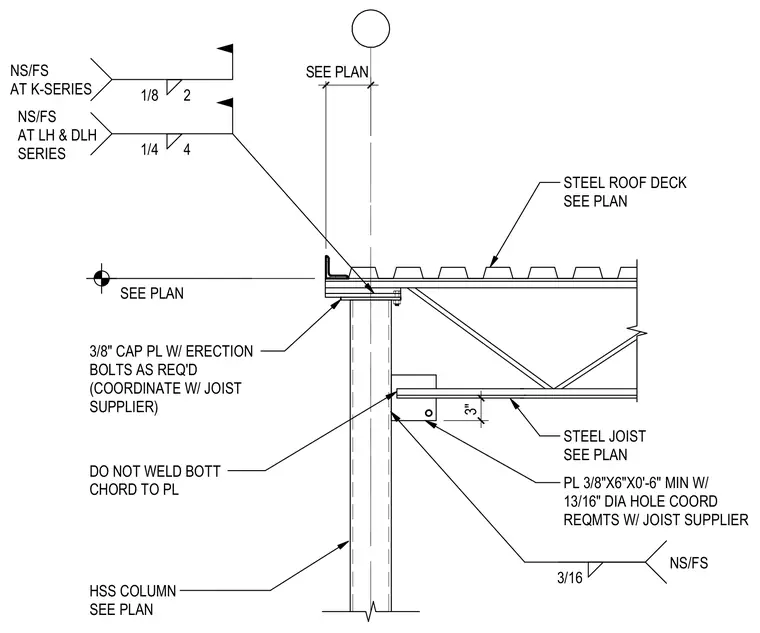

A hollow structural section steel column supports a steel roof deck and steel joist. A 3/8-inch cap plate with erection bolts is attached at the top of the column and coordinated with the joist supplier. A 3/8-inch by 6-inch by 6-inch minimum plate with a 13/16-inch diameter hole is welded to the column to support the steel joist. The bottom chord of the joist is left unwelded to the plate. Weld sizes vary depending on the joist series, with a 3/16-inch fillet weld specified at the seat plate and specific weld sizes indicated for K-series versus LH and DLH series joists.
STEEL JOIST SEE PLAN PL 3/8"X6"X0'-6" MIN W/ 13/16" DIA HOLE COORD REQMTS W/ JOIST SUPPLIER STEEL ROOF DECK SEE PLAN 3/8" CAP PL W/ ERECTION BOLTS AS REQ'D (COORDINATE W/ JOIST SUPPLIER) HSS COLUMN SEE PLAN SEE PLAN 3" DO NOT WELD BOTT CHORD TO PL 3/16 NS/FS 4 1/4 NS/FS AT LH & DLH SERIES 2 1/8 NS/FS AT K-SERIES SEE PLAN
