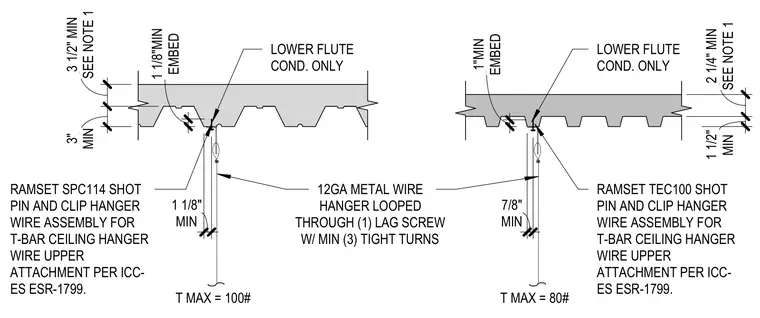

Upper attachment assembly for a T-bar ceiling hanger wire secured to a metal deck. The left assembly supports a maximum load of 100 pounds using a 12-gauge metal wire looped through a single lag screw with a minimum of three tight turns, maintaining a 1-1/8 inch minimum embedment in the lower flute condition only, or alternatively utilizing a Ramset SPC114 shot pin and clip hanger wire assembly compliant with ICC-ES ESR-1799. The right assembly supports a maximum load of 80 pounds utilizing a Ramset TEC100 shot pin and clip hanger wire assembly with a minimum 1-inch embedment in the lower flute condition only. Dimensional tolerances and vertical clearances are specified for each anchor configuration.
T MAX = 100# 12GA METAL WIRE HANGER LOOPED THROUGH (1) LAG SCREW W/ MIN (3) TIGHT TURNS MIN 1 1/8" EMBED 1 1/8"MIN MIN 7/8" LOWER FLUTE COND. ONLY LOWER FLUTE COND. ONLY RAMSET SPC114 SHOT PIN AND CLIP HANGER WIRE ASSEMBLY FOR T-BAR CEILING HANGER WIRE UPPER ATTACHMENT PER ICC- ES ESR-1799. T MAX = 80# MIN 1 1/2" SEE NOTE 1 2 1/4" MIN SEE NOTE 1 3 1/2" MIN MIN 3" RAMSET TEC100 SHOT PIN AND CLIP HANGER WIRE ASSEMBLY FOR T-BAR CEILING HANGER WIRE UPPER ATTACHMENT PER ICC- ES ESR-1799. EMBED 1"MIN
