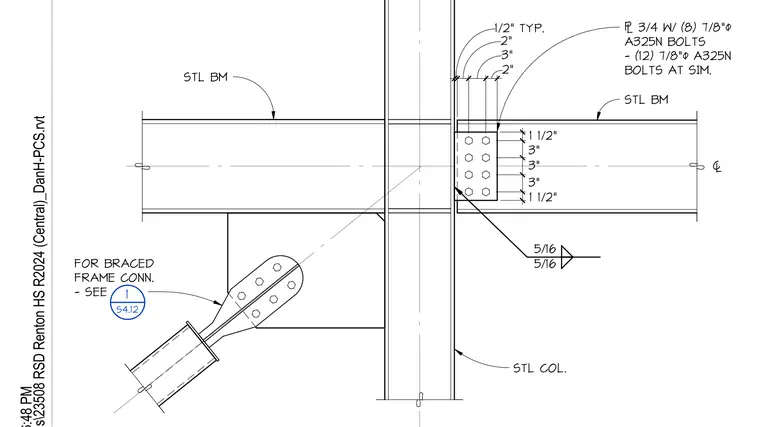

This structural connection detail shows a steel beam framing into a steel column with a three-quarter-inch plate fastened by eight seven-eighth-inch diameter A325N bolts, with twelve seven-eighth-inch diameter A325N bolts at similar conditions. A diagonal brace connects to a gusset plate welded to the column with five-sixteenth-inch fillet welds. Spacing dimensions are provided as one and one-half inches, three inches, two inches, and one-half inch typical. For braced frame connection details, reference sheet S4.12.
5/16 5/16 1 1/2" 3" 3" 3" 1 1/2" 1/2" TYP. 2" 3" 2" ! 3/4 W/ (8) 7/8", A325N BOLTS - (12) 7/8", A325N BOLTS AT SIM. STL BM STL COL. FOR BRACED FRAME CONN. - SEE STL BM 1 S4.12
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
