Structural · S-GM2Q9

Standard Reinforcing Bar Hooks and Bends

Materials

Steel Masonry / CMU

Elements

Walls Reinforcing

Connections

Rebar Splice / Development

About this detail

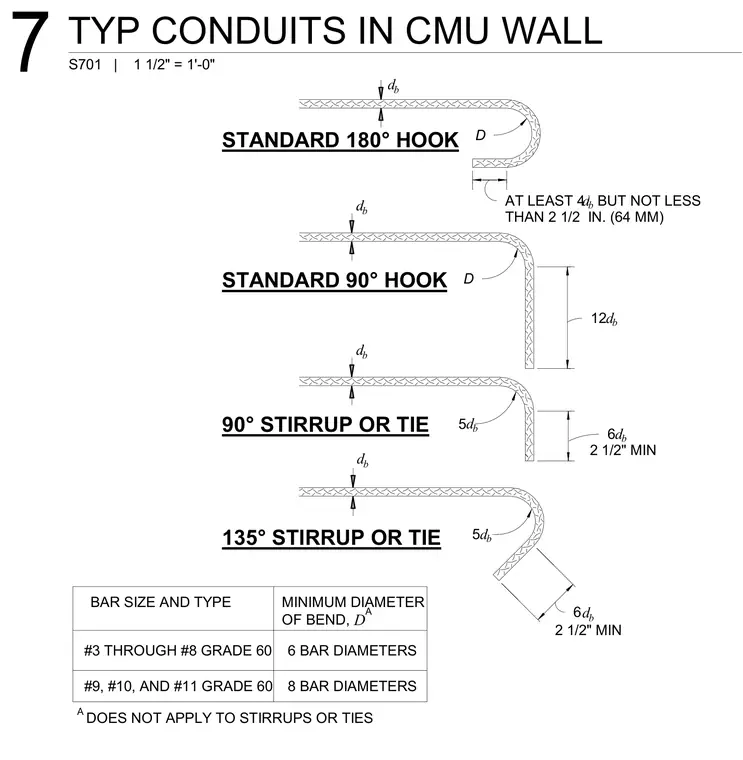

Standard reinforcing bar hook and bend geometries comprise standard 180-degree hooks, standard 90-degree hooks, 90-degree stirrups or ties, and 135-degree stirrups or ties. Each hook diagram indicates the bar diameter, minimum bend diameter, and extension length requirements. A companion table outlines minimum diameters of bend for grade 60 reinforcing bars ranging from number 3 through number 11 bar sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
