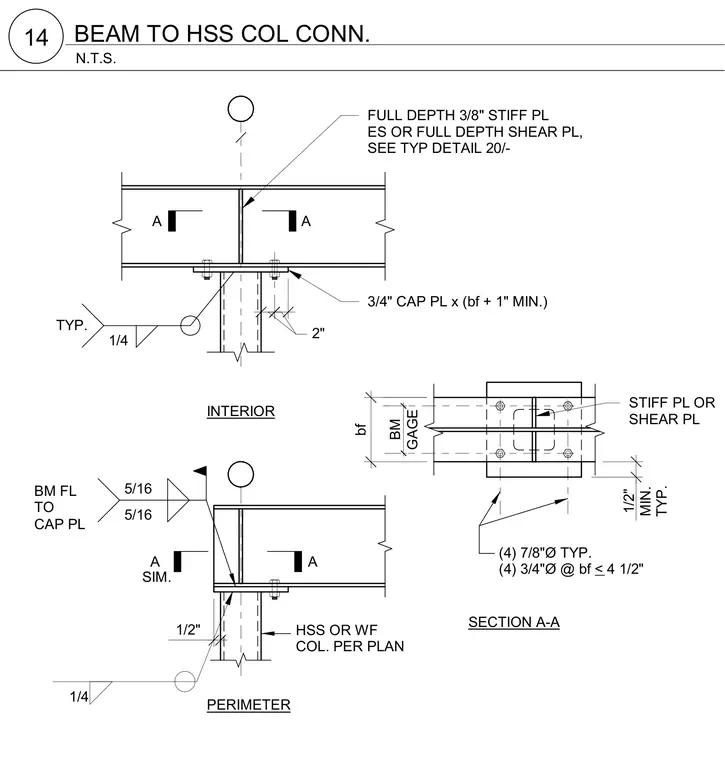

This structural steel connection details a wide flange beam supported by an HSS or wide flange column per plan. A three-quarter-inch cap plate sized to the beam flange plus one inch minimum is welded to the column. The beam flange connects to the cap plate using either four seven-eighths-inch diameter bolts typically, or four three-quarters-inch diameter bolts for beam flange widths under four and a half inches. A full-depth three-eighths-inch stiffener plate or full-depth shear plate is provided, with five-sixteenths-inch welds securing the beam flange to the cap plate. One-quarter-inch fillet welds secure the components typical, with specific interior and perimeter configurations indicated.
1/2" 2" bf 1/2" MIN. TYP. 1/4 TYP. 5/16 BM FL 5/16 TO CAP PL SIM. 3/4" CAP PL x (bf + 1" MIN.) STIFF PL OR SHEAR PL FULL DEPTH 3/8" STIFF PL ES OR FULL DEPTH SHEAR PL, SEE TYP DETAIL 20/- A A A A INTERIOR SECTION A-A PERIMETER (4) 7/8"Ø TYP. (4) 3/4"Ø @ bf < 4 1/2" HSS OR WF COL. PER PLAN GAGE BM 1/4 N.T.S. 14 BEAM TO HSS COL CONN.
